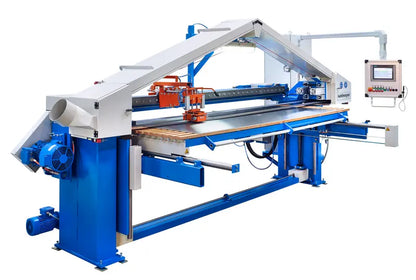

Kuhlmeyer ZBS Twin Long Belt Grinding Machine

The Kuhlmeyer ZBS Twin Belt Grinding Machine is built for the roughing and finishing on welded edges, corners and surfaces on flat and mid-size workpieces out of steel, stainless steel, and aluminium, i.e. doors, frames, cabinets, housings, hoods, furniture parts, frame parts in automotive and aircraft – manufacturing, round bins, cylinders, heaters etc.

Advantages of the Twin-Belt Grinding Machine Type ZBS:

- Savings of approx. 50% on working time by use of the 2 separate grinding belts for roughing and finishing: Only one handling and setup of the workpiece
- Further savings of approx. 25% by use of the handling device: The workpiece can be orientated on 5 axes and can be prepared on all sides in one operation
- Manually preparation and pre-grinding on welded seam can be avoided, because the grinding belts can be tensed very smooth and then rotated by 90°. The operator can reach almost all edges and corners of the workpiece and polish the surface
- High ergonomics by free access and view onto the workpiece
- High safety by always accessible E-Stop-String
- Flexible with the table height adjustment
- Simple adjustment of grinding belt speed and pressure for belt tensioning
- Automated reduce of grinding belt speed by pushing the grinding belt cover, no further manual setup required
- Simple control of handling functionality by foot operation panel
- Fast and simple grinding belt changing by self-centering belt run

ZBS 1:

Table: 2000 x 800 mm, Belt size: 100 x 7100 mm

ZBS 2:

Table: 3000 x 1000 mm, Belt size: 100 x 9000 mm

ZBS 3:

Table: 4000 x 1000 mm, Belt Size: 100 x 11200 mm

Options and variations:

- Workpiece handling device, manually (incl. additional F/B – rotate and swivelling unit with brake system)
- Add. contact drum
- Workpiece automation with add. motorized table
- Automatic table movement (motorized)
- Add. machine table and storage (stationary or movable)
- Scissor lifter (w/ or w/o motorized drive unit)
- Dust exhaust for different materials
- Robotic-Handling (automated, motorized)
- Extended stands for grinding of columns and cover plates, which are longer than the working area
