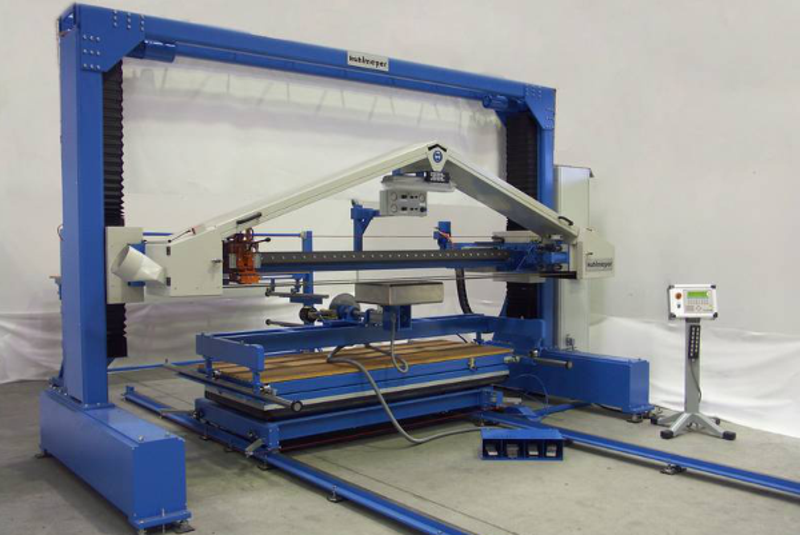

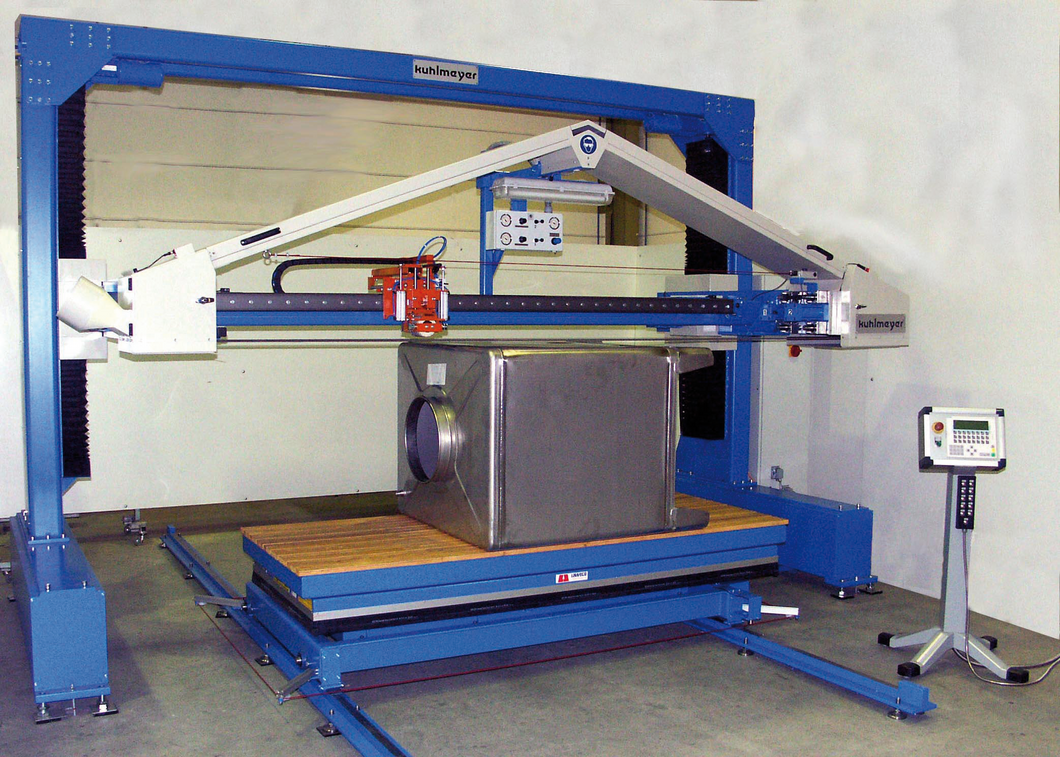

Kuhlmeyer PZM Twin Long Belt Grinding Machine

The Kuhlmeyer PZM Twin-Belt Grinding Machine is built for the roughing and finishing on welded edges, corners and surfaces on flat and bulky workpieces out of steel, stainless steel, and aluminium, i.e. cabinets, housings, hoods, furniture parts, frame parts in automotive-, aircraft- and train manufacturing, cylinders , heater, tubes etc.

Advantages of the Kuhlmeyer PZM:

- Savings of approx. 50% on working time by use of the 2 separate grinding belts for roughing and finishing: Only one handling and setup of the workpiece
- Further savings of approx. 25% by use of the handling device: The workpiece can be orientated on 5 axes and can be prepared on all sides in one operation
- Manually preparation and pre-grinding on welded seam can be avoided, because the grinding belts can be tensed very smooth and then rotated by 90°. The operator can reach almost all edges and corners of the workpiece and polish the surface
- High ergonomics by free access and view onto the workpiece
- High safety by always accessible E-Stop-String
- Flexible with the Grinding unit – height adjustment
- Simple adjustment of grinding belt speed and pressure for belt tensioning
- Simple control of handling functionality by foot operation panel
- Fast and simple grinding belt changing by self-centering belt run
- Many additional features for safe handling can be adapted or integrated

PZM 2.2:

Working area: 3000 mm, Grinding Belt: 120 x 9000 mm

PZM 3.2:

Working area: 4000 mm, Grinding Belt: 120 x 11200 mm

PZM 4.2:

Working Area 5000 mm, Grinding Belt 120 x 13200 mm
