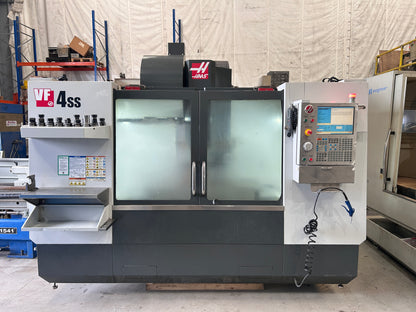

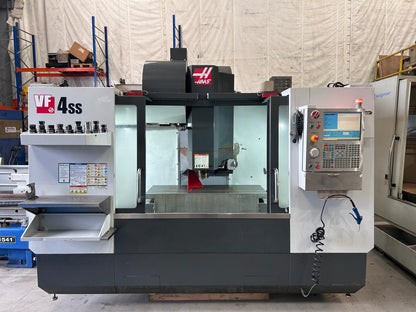

2011 Haas VF4 SS Vertical Machining Centre
2011 Haas VF4 SS Vertical Machining Centre

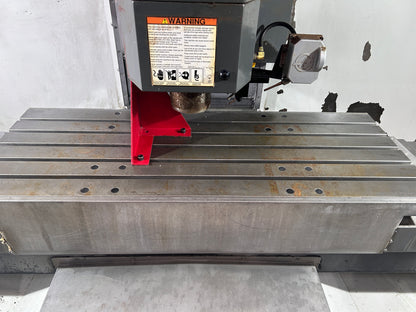

Machining Centre Table Dimension 1,320 x 495mm (5 'T'Slots).
Maximum Table Load 680kg.
Axis Travel 'X'=1,270mm,'Y'=508mm, 'Z'=635mm.
Rapid Traverse 'X'=35.6m/min, 'Y'=35.6m/min, 'Z'=35.6m/min.
Maximum Cutting Feed 21.2m/min.
Spindle Nose To Table (Min-Max) 102mm-737mm.
Maximum Spindle Speed 12,000rpm (22.4kW Motor).

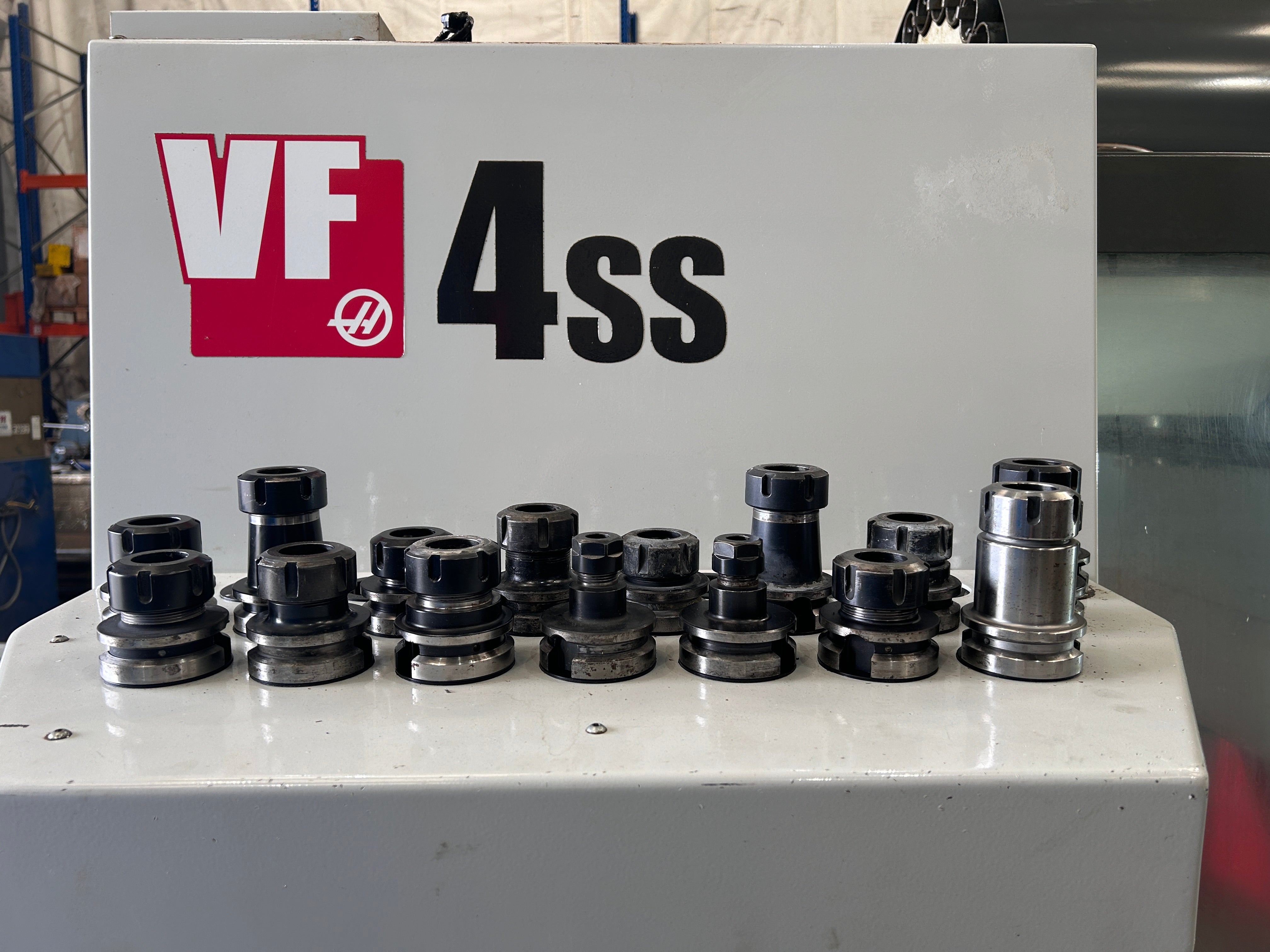

Spindle Taper BT40.

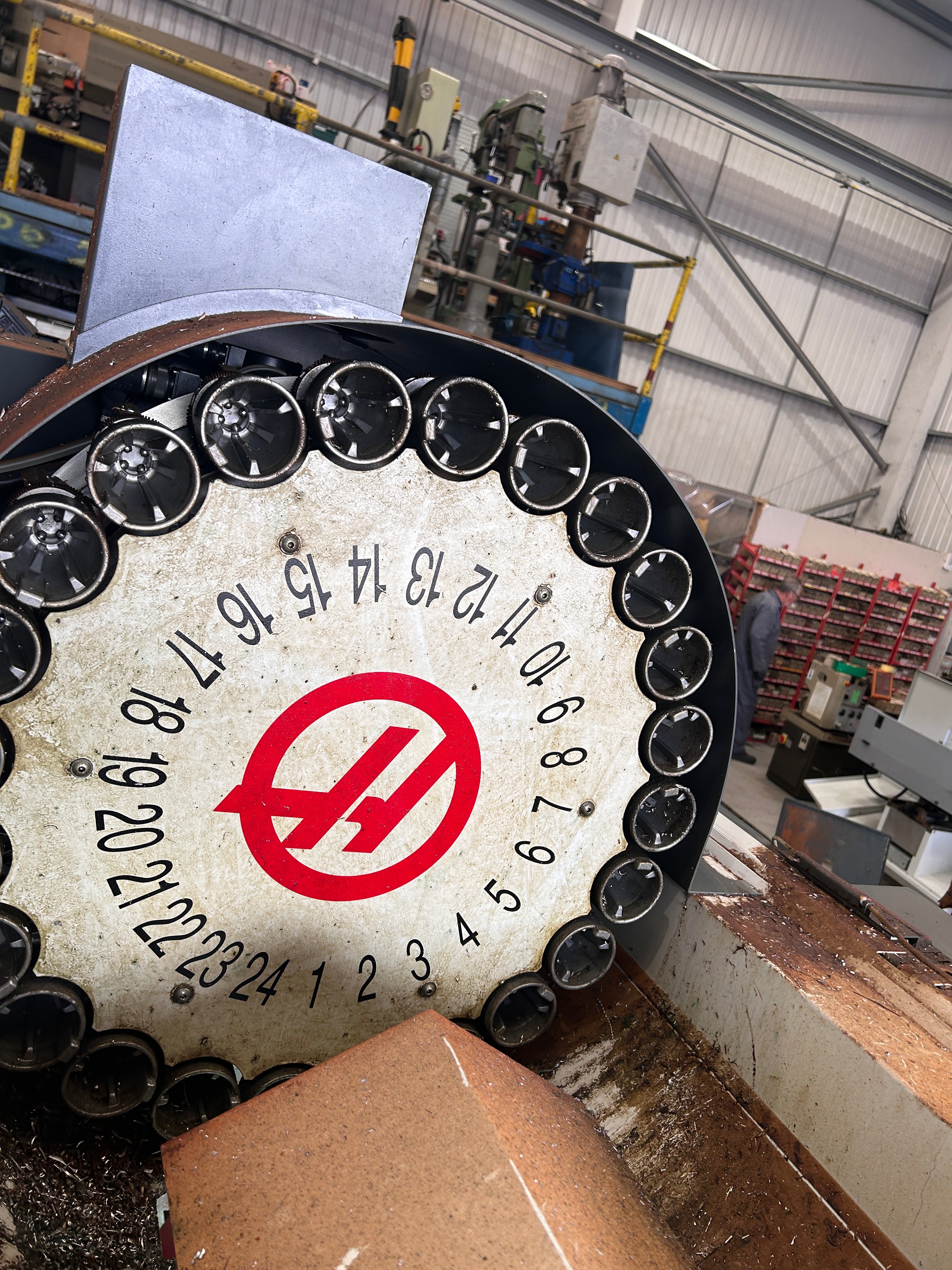

24 Position ATC.

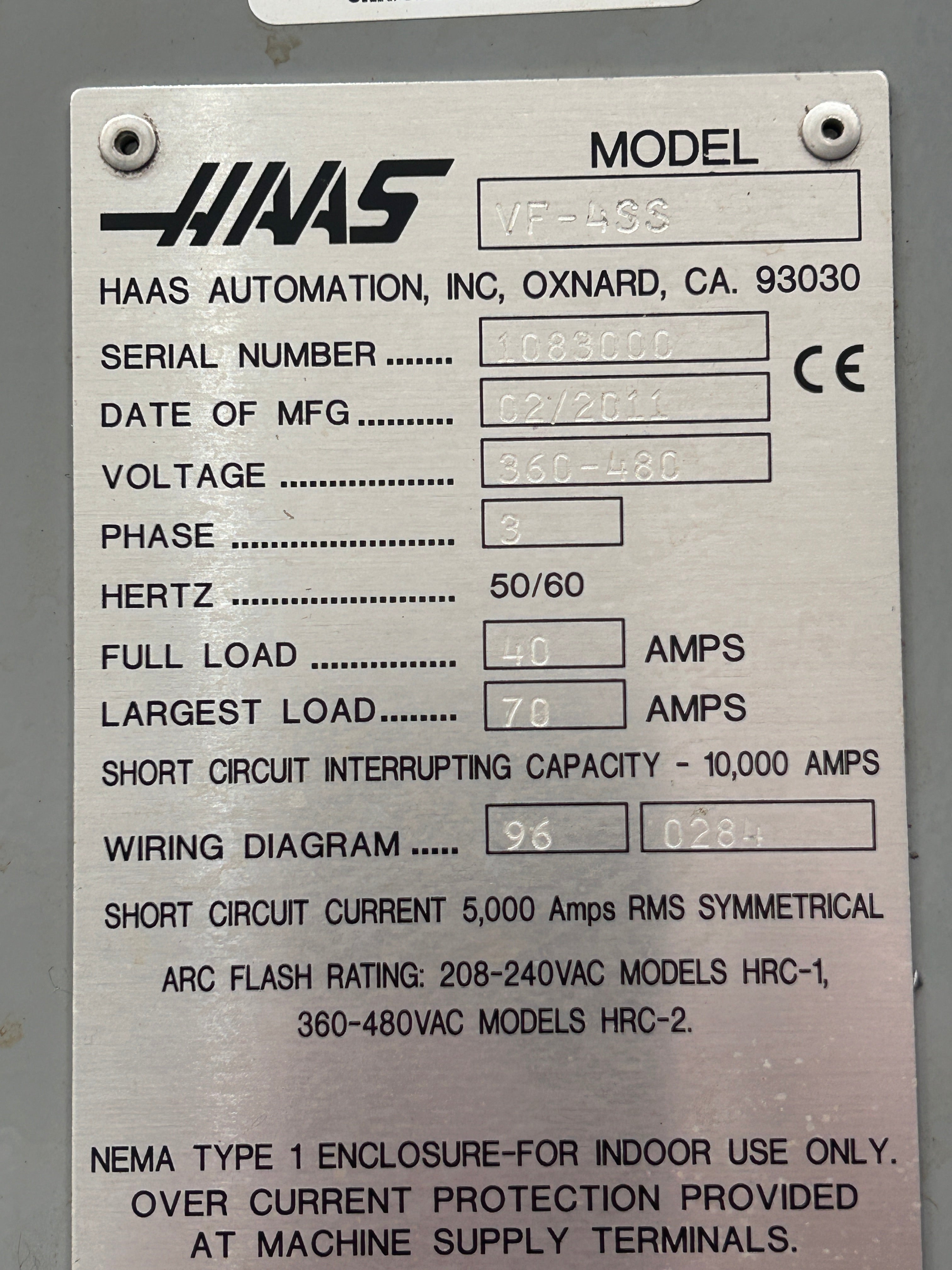

S/No. 1083000 (2011).

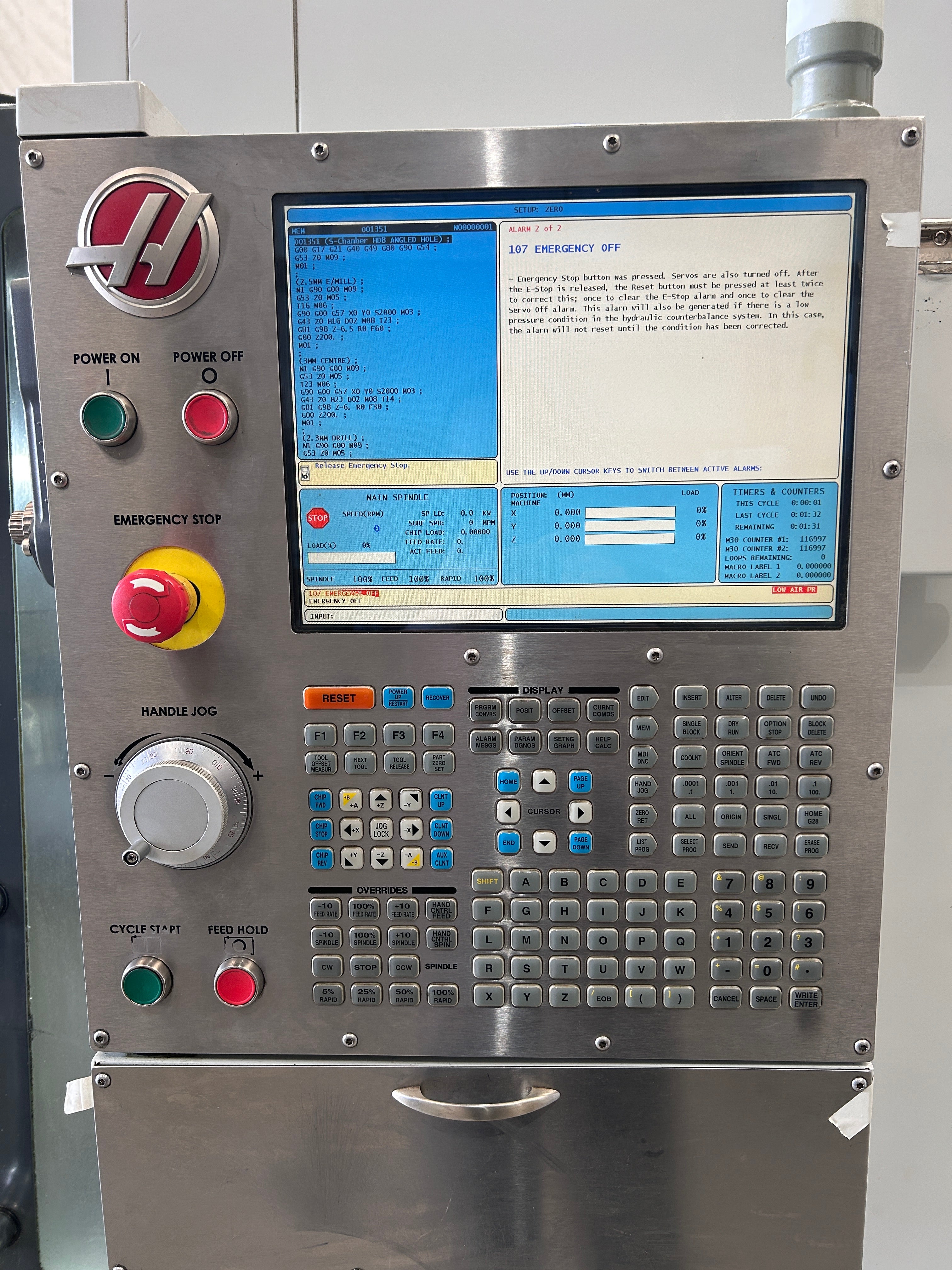

Coolant, Interlocked guards, Low Volt Light, Programmable Coolant Nozzle, Remote Hand Wheel, Swarf Auger, USB Port
Pairs well with
Specifications
| Manufacturer | Haas |
| Model | |
| Condition | Used |
| Stock Number |
Request a Quote for 2011 Haas VF4 SS Vertical Machining Centre
