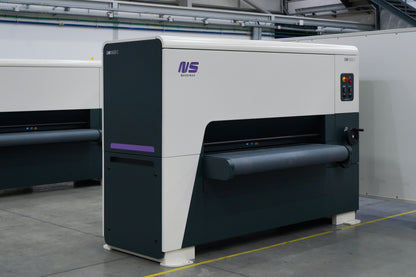

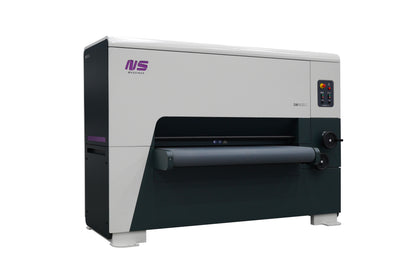

NS Maquinas DM1600 C Sheet Metal Edge Rounding Machine

DM1600 C

Single-Sided

Edge Rounding

Job-Shop Version

1600mm Width

DM1600 C performs edge rounding and removes sharp edges on both external and internal contours of stainless steel, steel or aluminium parts either cut in laser, shear or punching machine.

This machine works parts of different dimensions including products as small as 50x50mm and has an increased working capacity of 1600mm.

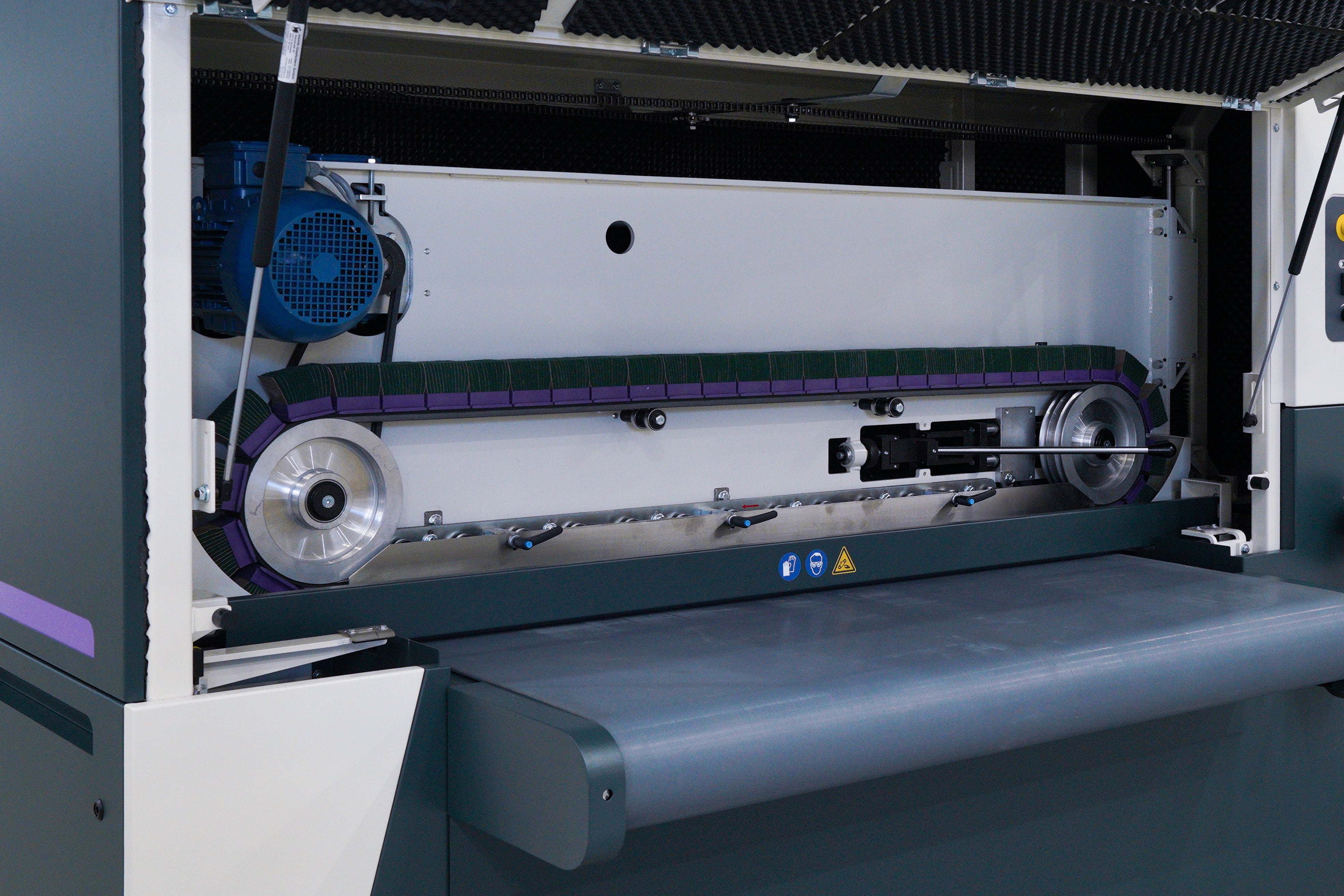

DM1600 C has a station with double cross belts for edge rounding, leaving clean, soft and burr-free edges on the complete parts.

TECHNICAL DETAILS

Working capacity (mm) 1600x50

No. Cross belt stations 1

Cross belt speed (m/s) 2-8

Feeding speed (m/m) 0.6-3.2

Cross Belt Motor (kW) (2x) 4

Feeding motor (kW) 0.12

Total power (kW) 8

Consumption (A) 13

Dust extraction connection per head (Ø mm) 150

Dimensions (mm) 2780x1660x2040

Weight (kg) 2034
