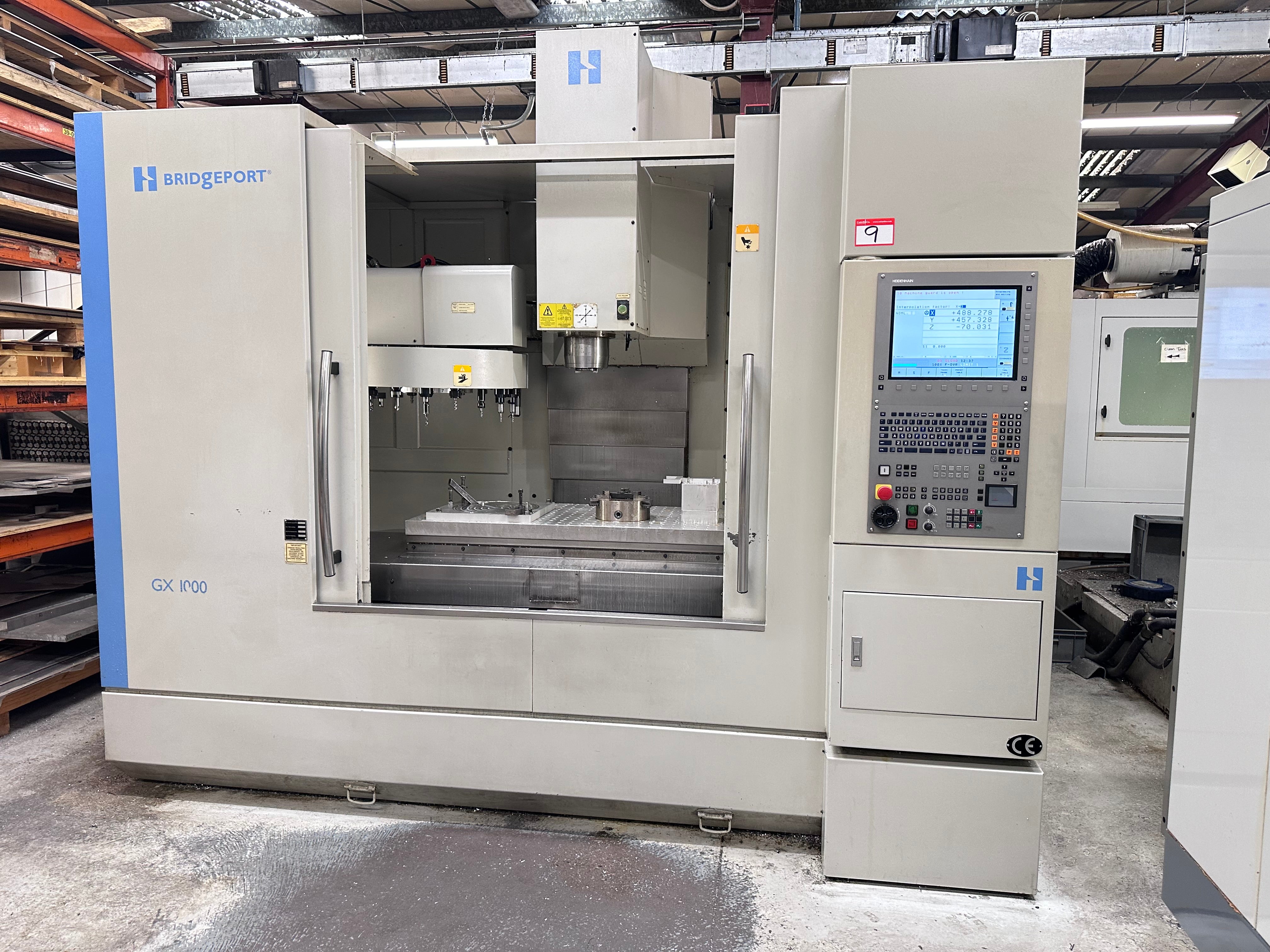

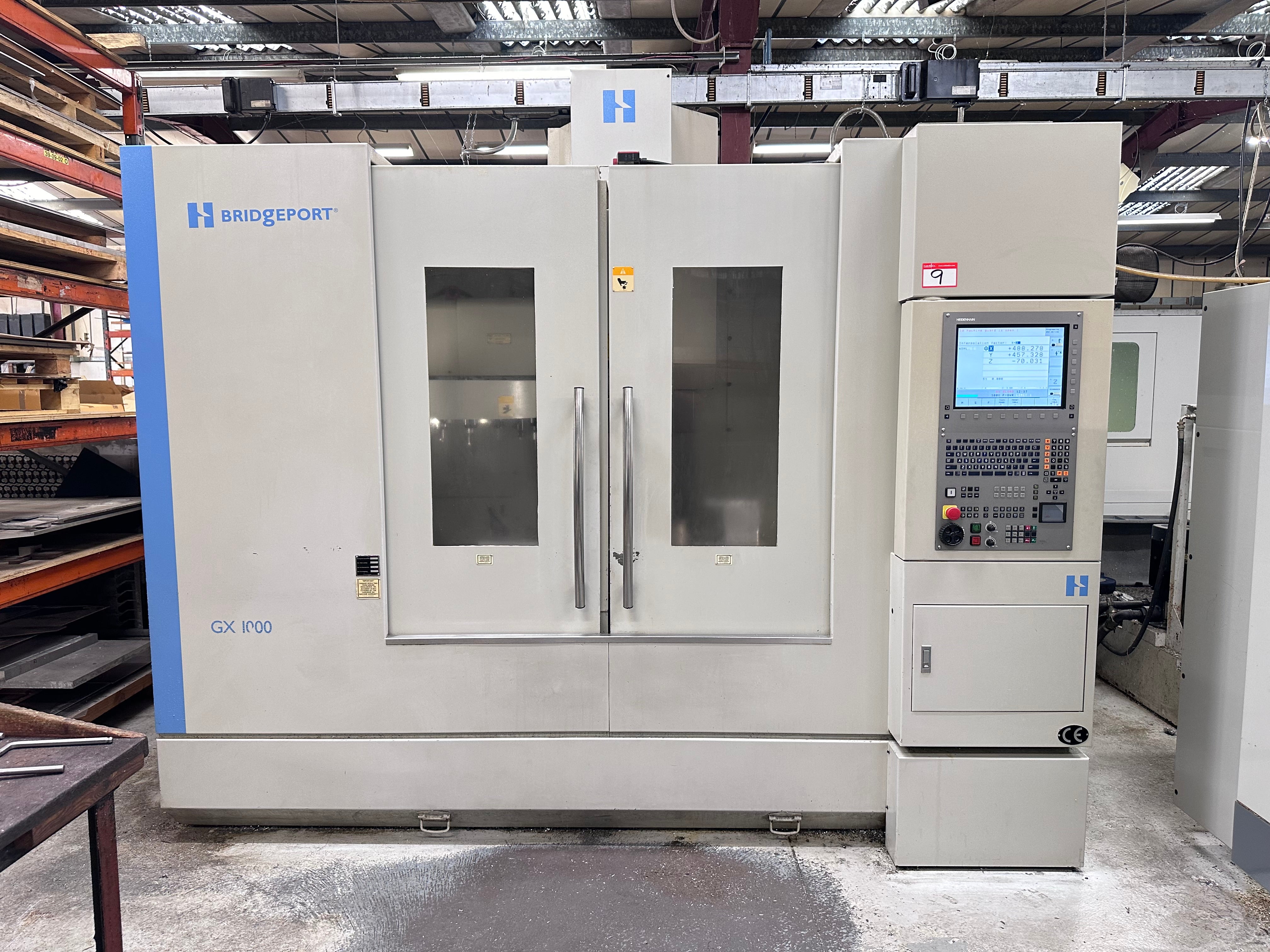

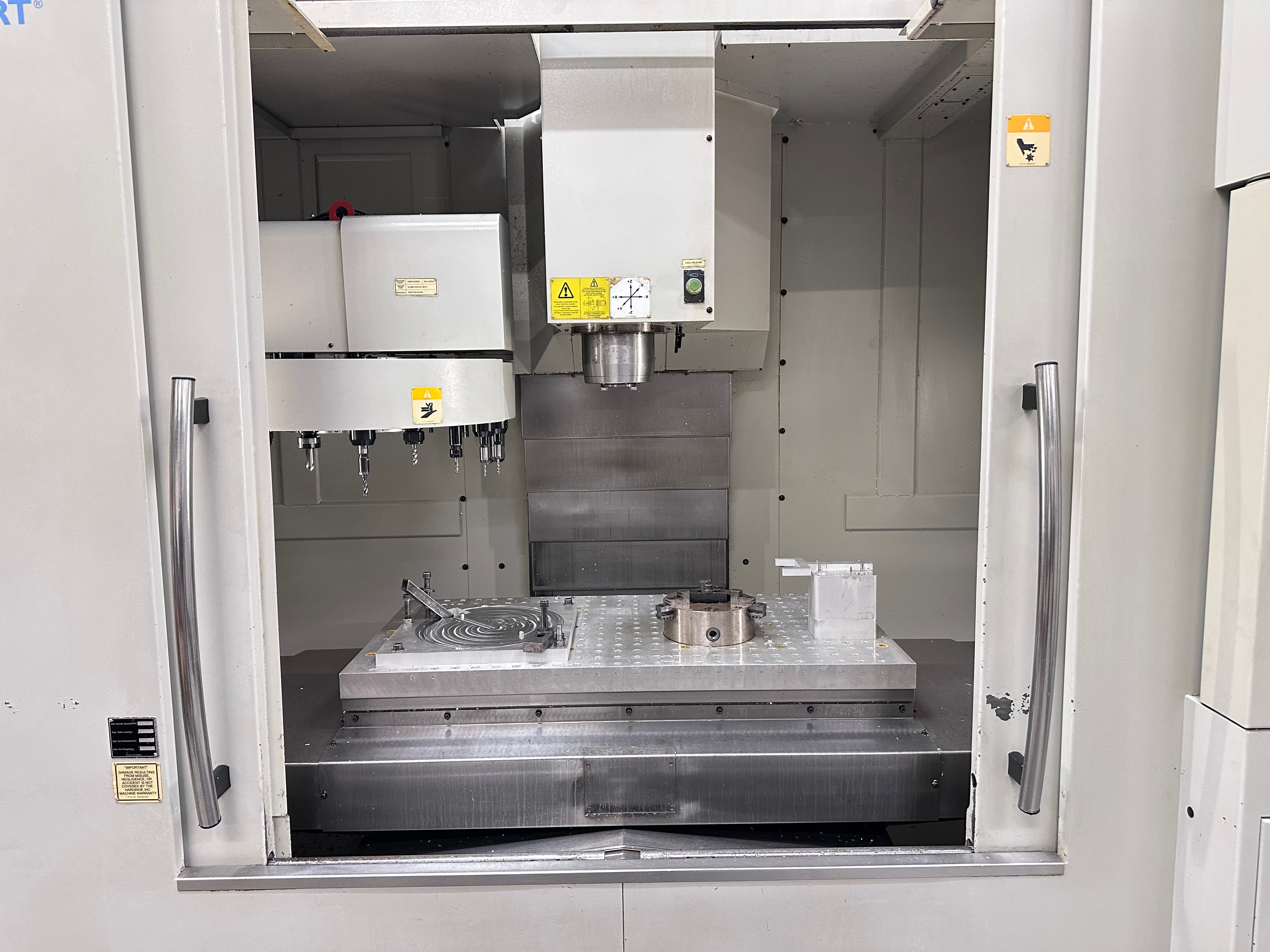

2007 Hardinge Bridgeport GX1000 CNC Vertical Machining Centre

The 2007 Hardinge Bridgeport GX1000 CNC Vertical Machining Centre offers precision and efficiency in manufacturing with its advanced CNC technology. With a large working capacity and state-of-the-art control system, it provides increased productivity and reduced production time. Upgrade your machining capabilities with this reliable and modern equipment.

Technical data / Standard dimension:

- 2007 Hardinge Bridgeport GX1000 CNC Vertical Machining Centre
- Control Heidenhain iTNC 530
- Machine Dimensions 2955 x 2137 x 2713mm
- Machine Weight 5900kg
- Maximum Tool Diameter 89mm
- Maximum Tool Diameter with Empty Adjacent Pockets 150mm
- Maximum Tool Length 300mm
- Maximum Tool Weight 6kg
- Maximum workpiece weight 700kg
- Min - Max Height under Spindle 145 - 685mm
- Rapid Feedrates 36m/minute
- Spindle Motor Power 15kW
- Spindle Speed 8000rpm
- T- Slots 3 x 18mm

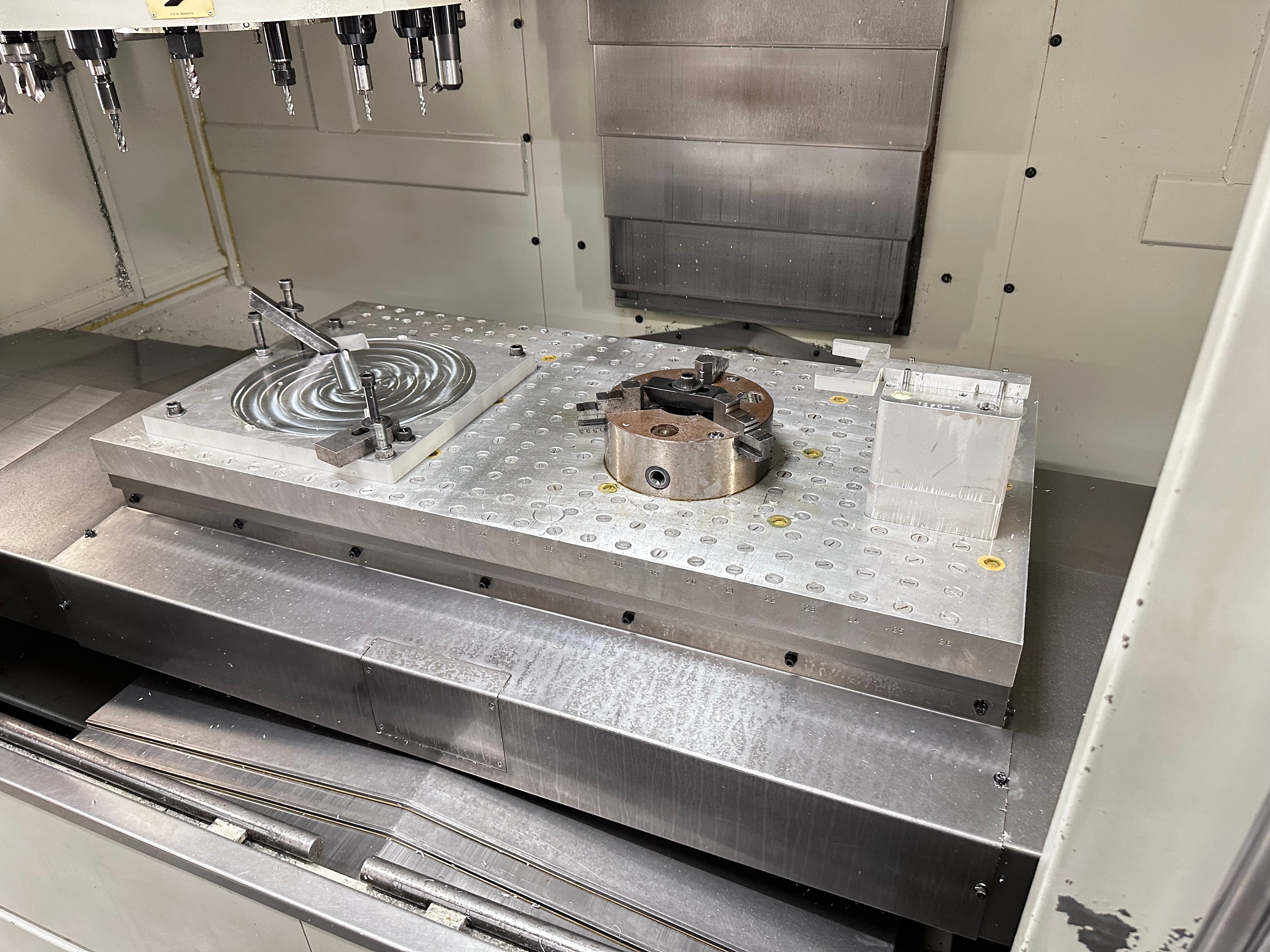

- Table Size 1120 x 540mm

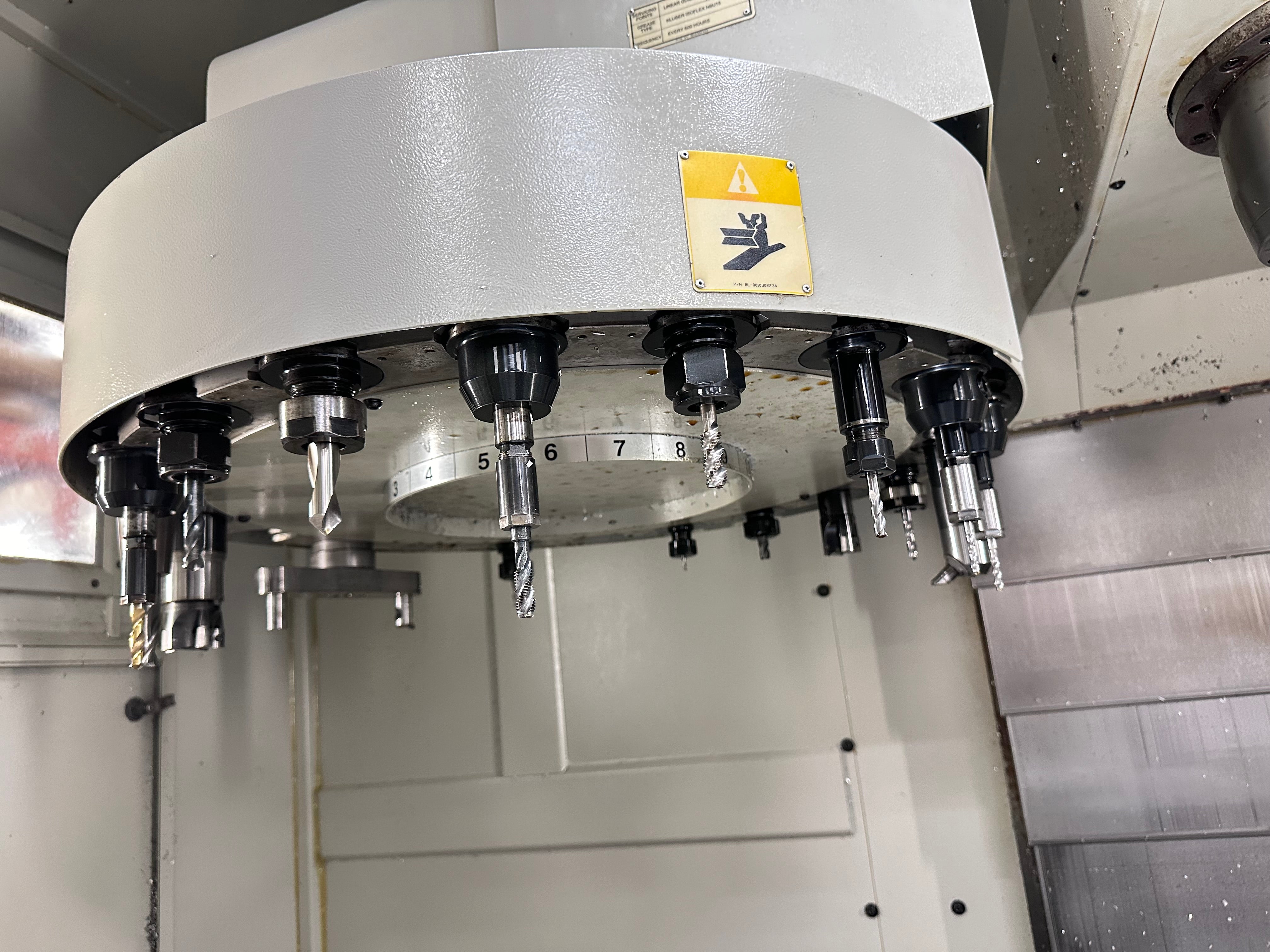

- Tool Change Capacity 24 Station
- Tool Change Time (Chip to Chip) 4.5 seconds
- Tool Size BT40
- Traverses XYZ 1020 x 540 x 540mm
